Smart Office — Real-time IoT Dashboard with Floor Plan, MQTT & WebSockets

Most smart office dashboards feel like glorified control panels: you click a button… and hope something happens.

For this project, I wanted to build something different: a SaaS-style Smart Office platform that doesn’t just show device states, but truly feels alive — real-time synced, easy to manage, and visualized on an interactive floor plan.

This post explains what I built, how it works under the hood, and what I learned while developing it.

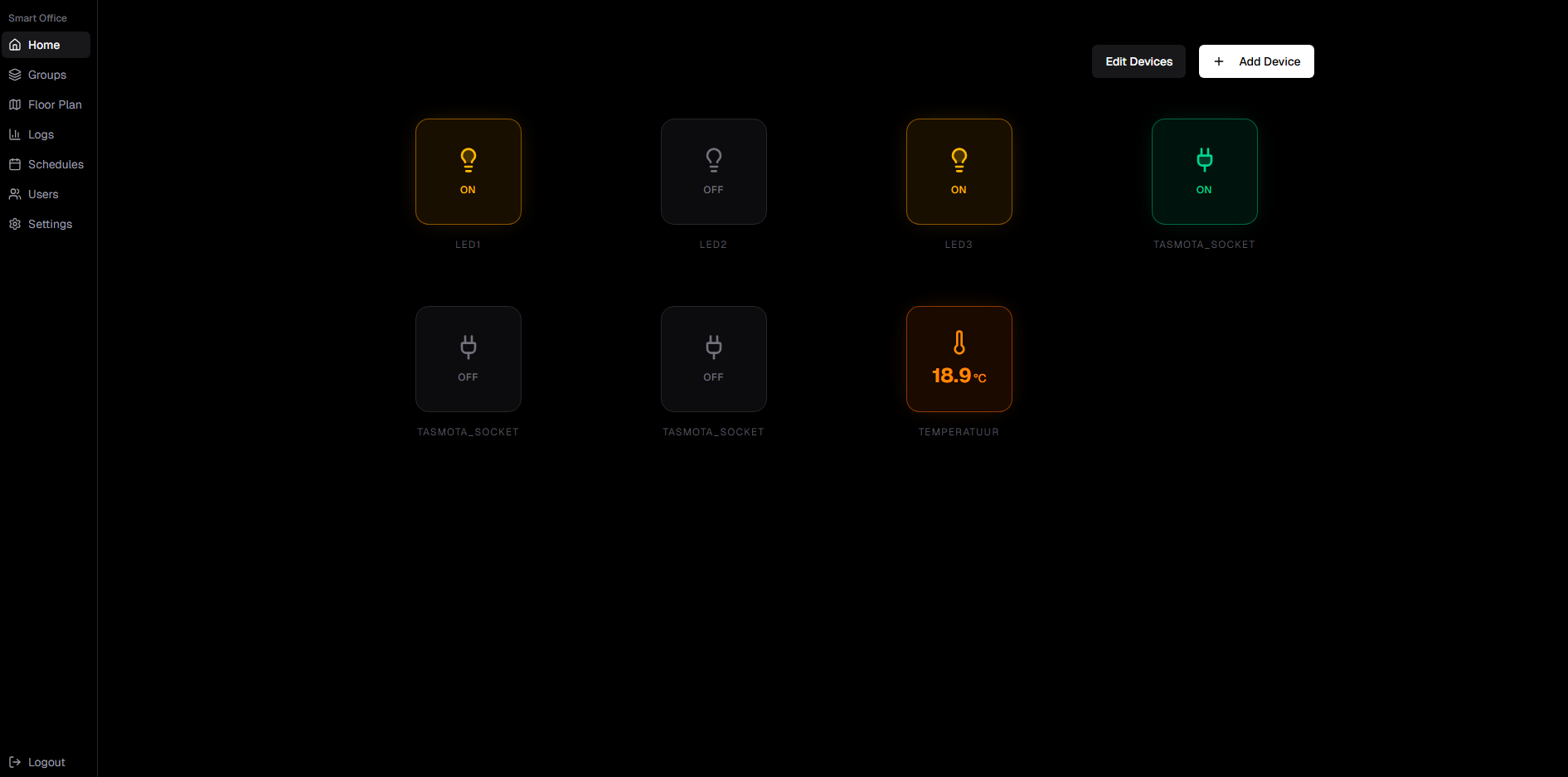

Smart Office home dashboard showing real-time device controls and sensor readings

What I built

Smart Office is a full-stack IoT platform where you can:

• Control devices like lights (toggle ON/OFF)
• View sensor readings like temperature + humidity
• Manage devices and groups via a clean UI
• Place devices on a Floor Plan (visualization)
• Track everything via Logs (activity + readings)
• Schedule actions automatically (timed triggers)
• Control access using Users + Roles
• Connect real devices through MQTT + an IoT edge layer

The goal was to make something that feels like a real product: not just a demo screen, but an actual system you could install and use.

Why I built it

This project was built as part of a school research project. The central research question was:

"How can Next.js and a tRPC-based API be used to develop a robust and performant real-time dashboard that allows users to collaborate on managing smart devices in an office building?"

This gave me the opportunity to combine multiple areas I enjoy working in:

• modern web UI (Next.js)
• real-time systems (WebSockets)
• IoT communication (MQTT)
• database modeling (Prisma + MongoDB)
• system design and architecture

And importantly: I wanted it to be beginner-friendly and usable, not only technically correct.

System architecture (high-level)

The project is built as a layered system:

1) UI layer (Next.js dashboard)

The user interacts with a dashboard containing pages like:

• Home / Dashboard
• Devices
• Groups
• Floor Plan
• Logs
• Schedules
• Users / Roles / Settings

The UI updates immediately as events happen (device toggles, sensor updates, logs).

2) Central backend layer (Node.js + Prisma)

The backend handles:

• database operations
• role-based access control
• device metadata
• schedules
• logs storage
• real-time updates to the UI

3) Real-time layer (WebSocket server)

Instead of forcing the frontend to constantly refresh, changes are pushed instantly.

Whenever something changes (device status / new reading), clients update in real-time.

4) IoT layer (MQTT broker + bridge)

To talk to real devices, I integrated MQTT:

• devices publish readings and statuses
• the server publishes control commands
• the MQTT bridge translates between MQTT messages and the app state

5) Database (MongoDB)

All state and history is stored in MongoDB via Prisma:

• users & roles
• devices & groups
• logs (events + readings)
• schedules

The "Digital Twin" concept — Floor Plan visualization

One of the features I'm most proud of is the Floor Plan view.

Instead of listing devices in a boring table, you can:

• create a floor / level
• draw or upload a floor plan (SVG)
• place devices/groups visually on the map
• control them directly from the layout

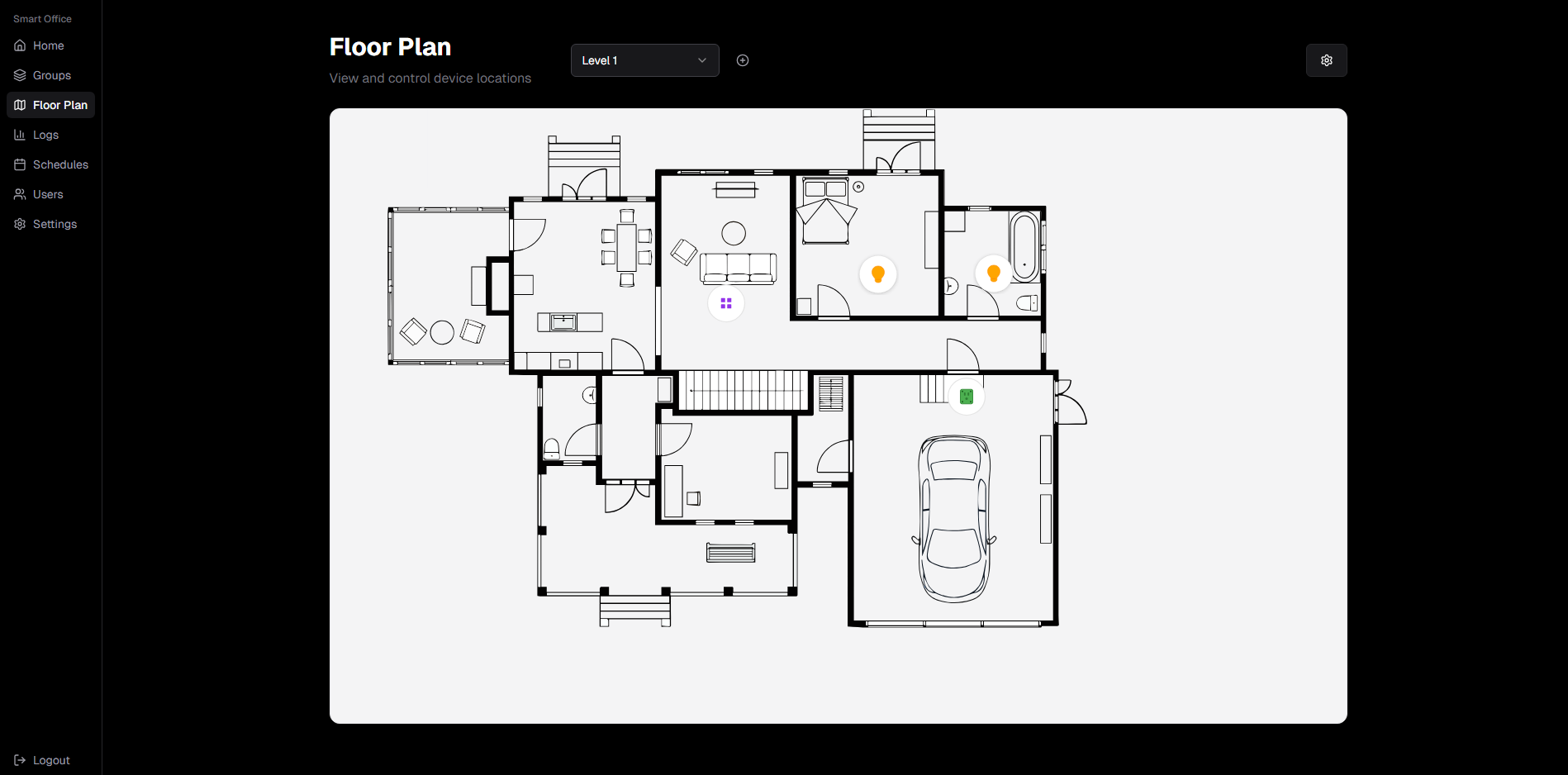

Interactive floor plan with device placement and real-time control

That makes the UI feel like a digital representation of a real office space, which is exactly what a Digital Twin should be.

It's also a UX upgrade: users immediately understand where things are.

Real-time sync: making the system feel "alive"

The platform uses WebSockets so the UI updates instantly.

Examples:

• toggle a light → the UI updates + an event appears in Logs
• a sensor publishes new readings → dashboard tiles update live
• changes made in one browser are reflected in others

This sounds “simple”, but it’s one of the hardest parts to get right:

• you need consistent state
• you need predictable events
• you need to avoid UI desync bugs
• you need logs that reflect truth, not “optimistic UI lies”

I spent a lot of time making sure the system behaves the same every time, even when things disconnect or reconnect.

Roles & permissions (a real-world requirement)

In real buildings, not everyone should be able to do everything.

So Smart Office includes:

• User roles (Admin / Level 1 / Level 2 / User)
• Allowed Roles per device
• ability to create custom roles

This matters because it forces the platform to behave like a real system: access control isn’t optional in production.

Scheduling automation

Users can schedule actions like:

• turning on lights at a specific time
• running device commands later

This adds real business value because automation is often the main reason people want “smart” systems in the first place.

Logs: observability and debugging

A big problem with IoT systems is that when something goes wrong… you don’t know why.

That’s why Logs are part of the product, not an afterthought.

Logs show:

• type (DEVICE / SENSOR)
• source
• action/event name (toggle, reading, etc.)
• value changes (OFF → ON)
• time of event

This makes debugging much easier and makes the whole platform more trustworthy.

Challenges I ran into

1. Defining the "source of truth"

In IoT you always have this question:

• is the device state coming from the UI?
• from the database?
• from the MQTT message?
• from the physical device itself?

To keep things stable, the backend acts as the consistent “brain” and publishes events to clients.

2. Keeping UI + MQTT + DB consistent

Race conditions and out-of-order updates can get messy fast.

So I designed the system around predictable events and logs, and made sure the frontend only reacts to real events.

3. Making it feel like a product

It’s easy to build a prototype that only works for the developer.

It’s harder to build something where a beginner can:

• install it on a clean PC
• open the dashboard
• understand what to do without explaining it in person

So I also wrote documentation and designed flows that make sense for real users.

What I'm most proud of

• The floor plan UX
• Real-time "reactive" feeling (WebSockets done right)
• Clean separation between UI / backend / IoT integration
• Role-based access control
• Logs + scheduling turning it into an actual usable system

What I'd improve next

If I continue this project, I’d love to add:

• device “offline” detection + health status
• dashboards per building or tenant
• more device types (dimmers, thermostats, blinds)
• historical sensor graphs
• deployment setup for production environments

Final thoughts

This project was a great mix of software engineering, system design and UX thinking.

It gave me hands-on experience with:

• full-stack architecture
• real-time systems
• IoT communication patterns
• designing something usable, not just “working”

And most importantly: it was fun to build.
